Manual Valve

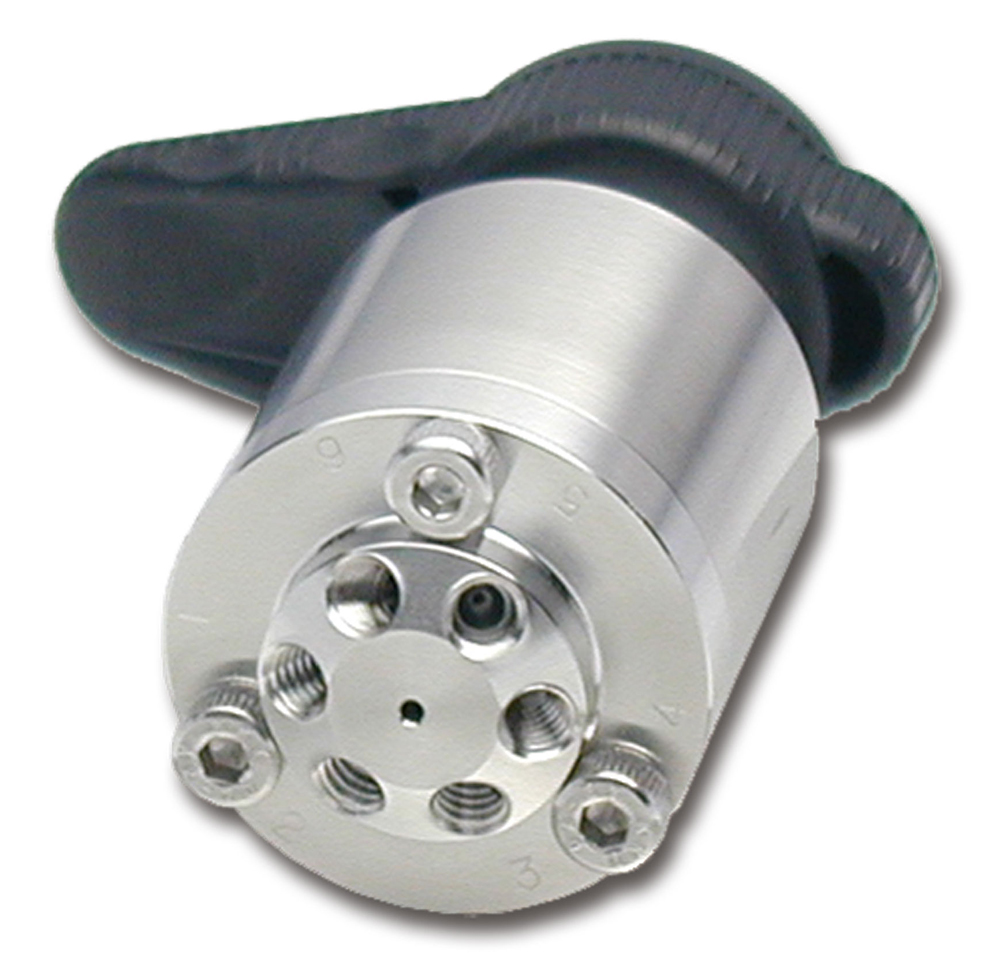

Manual Valve — Manual Valve V05

A convenient manual valve for switching between flow paths

Features

Low torque design for easy switching
Maximum pressure 35MPa (5075 psi)

Spec

Product Number	V05
Type	6 port 2 position

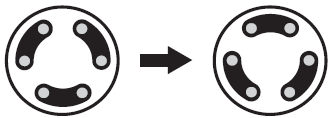

Path Position
Max Pressure	35MPa(5075psi)
Wetted Materials	SUS316 , PEEK
Tube OD	1/16"
Path Diameter	0.6mm(0.024")
Thread Size	No.10-32UNF
Order Code	VH-V05

Compact Manual Valves

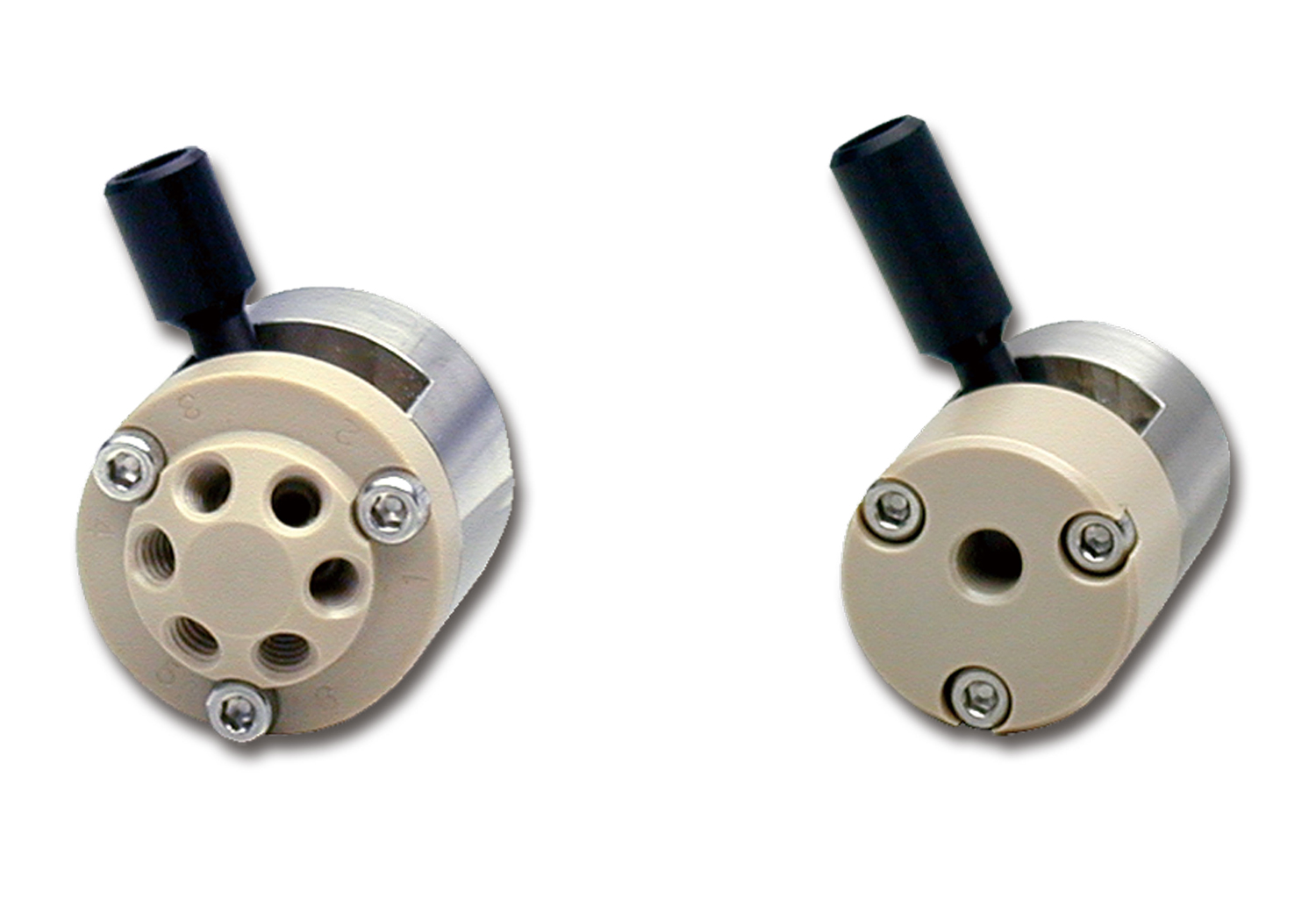

Compact Manual Valves — Manual Valve V200 / Manual Valve V239

A convenient, ultra-compact valve for switching flow paths

Features

Attach to the valve panel (sold separately) to allow operation from valve head side
A line-up of 5 units to cover a wide variety of applications

Spec

*Tables can be swiped.

Product Number	V200	V201	V204	V512	V239
Type	6 port 2 position	3 port 2 way	2 port selection	2 port selection	2 port selection

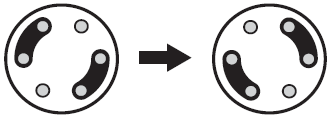

Path Position
Max Pressure	20MPa(2900psi)	20MPa(2900psi)	20MPa(2900psi)	30MPa(4350psi)	1MPa(145psi)
Wetted Materials	PEEK	PEEK	PEEK	SUS、PEEK	PEEK
Tube OD	1/16"	1/16"	1/16"	1/16"	φ3、1/8"
Path Diameter	0.6mm(0.024")	0.6mm(0.024")	0.8mm(0.03")	0.8mm(0.03")	1.0mm(0.04")
Thread Size	No.10-32UNF	No.10-32UNF	No.10-32UNF	No.10-32UNF	1/4-28UNF
Order Code	VH-V200	VH-V201	VH-V204	VH-V512	VH-V239
