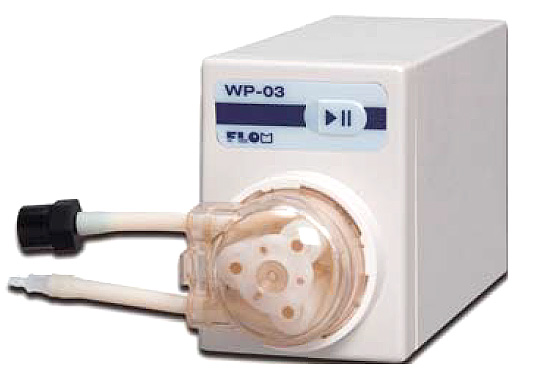

| Product Name | Roller Pump |
| Product Number | WP-03 |
| Flow Rate Range | Approx. 0.5, 1.0, 2.0, 3.0 mL/Min. (4 step settings in rotary style) |
| Features | Hold down front switch to purge (approx. 5mL/min) |
| Max Pressure | 90 kpa or less (Pharmed® BPT*¹) |
| Intake Pressure | -90 kpa or less (Pharmed® BPT*¹) |
| Liquid Temperature Range | 5～50℃ |
| Rotary Direction | Clockwise when viewed from front |
| Remote Control | Input : START / STOP Output : ー |
| Tubing | Pharmed® BPT*¹ / Fluran F-5500-A / TransMaster TM-15 |
| Dimensions | 65 (H) × 46 (W) × 110 (D) mm, exmcluding protuberances |
| Weight | Approx. 0.5kg |
| Power | DC 24 V , MAX 15 W (AC Adapter included) |
| Order Code | SWP-PA029 |
