HOME  >  Products  >  Plunger Pump  >  Pump Accessories

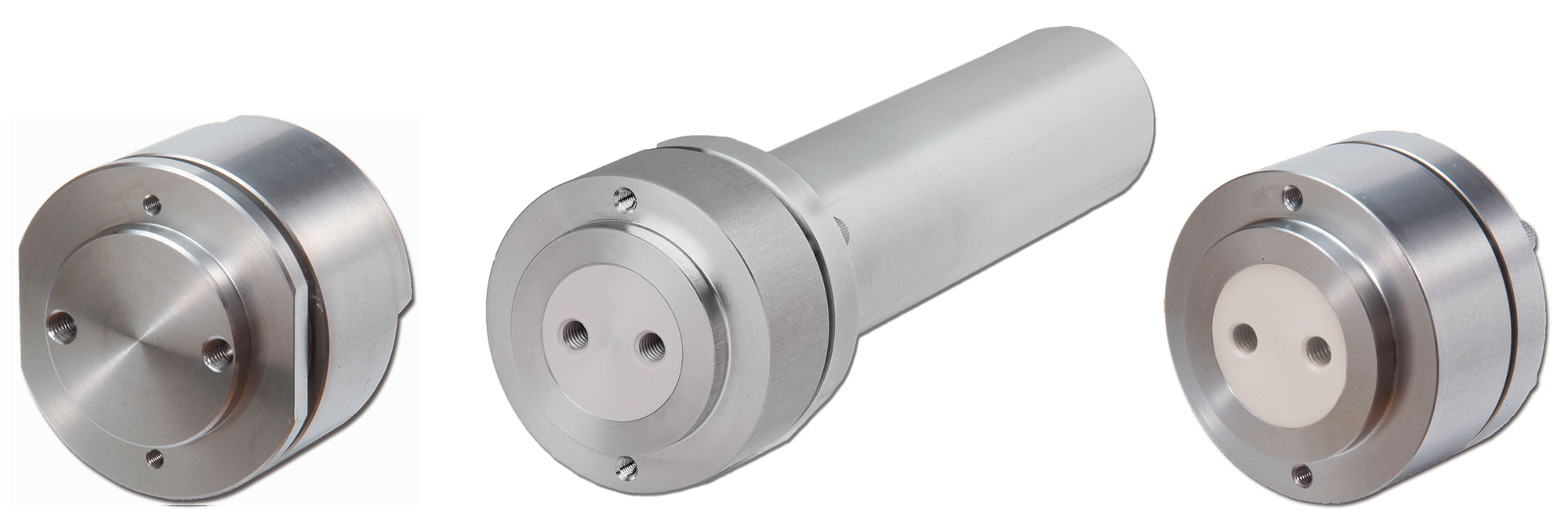

Pulse Dampers

脈流ダンパー
High Pressure Damper 9810 / Medium Pressure Damper 9805 / Low Pressure Damper 9800

These pulsation dampers will improve flow performance of single plunger pumps. Available to choose from 3 kinds.

Spec

Product Name High Pressure Damper Medium Pressure Damper Low Pressure Damper
Product Number 9810 9805 9800
Max Pressure 20MPa 10MPa 2MPa
Pulse Control Range 8～12MPa 0.5 ～ 5 MPa 0.1～0.7MPa
Internal Voume Approx.3.5ml Approx. 0.8 mL Approx.0.8ml
Wetted Materials PEEK、PTFE PEEK、FEP PEEK、FEP
Port Type No.10-32UNF No.10-32UNF No.10-32UNF
Dimensions 直径50mm×長さ36.5mm 直径45mm×長さ150mm 直径45mm×長さ33mm
Weight Approx.0.3kg Approx.0.3kg Approx.0.3kg
Order Code PDM-F001 PDM-F003 PDM-F002

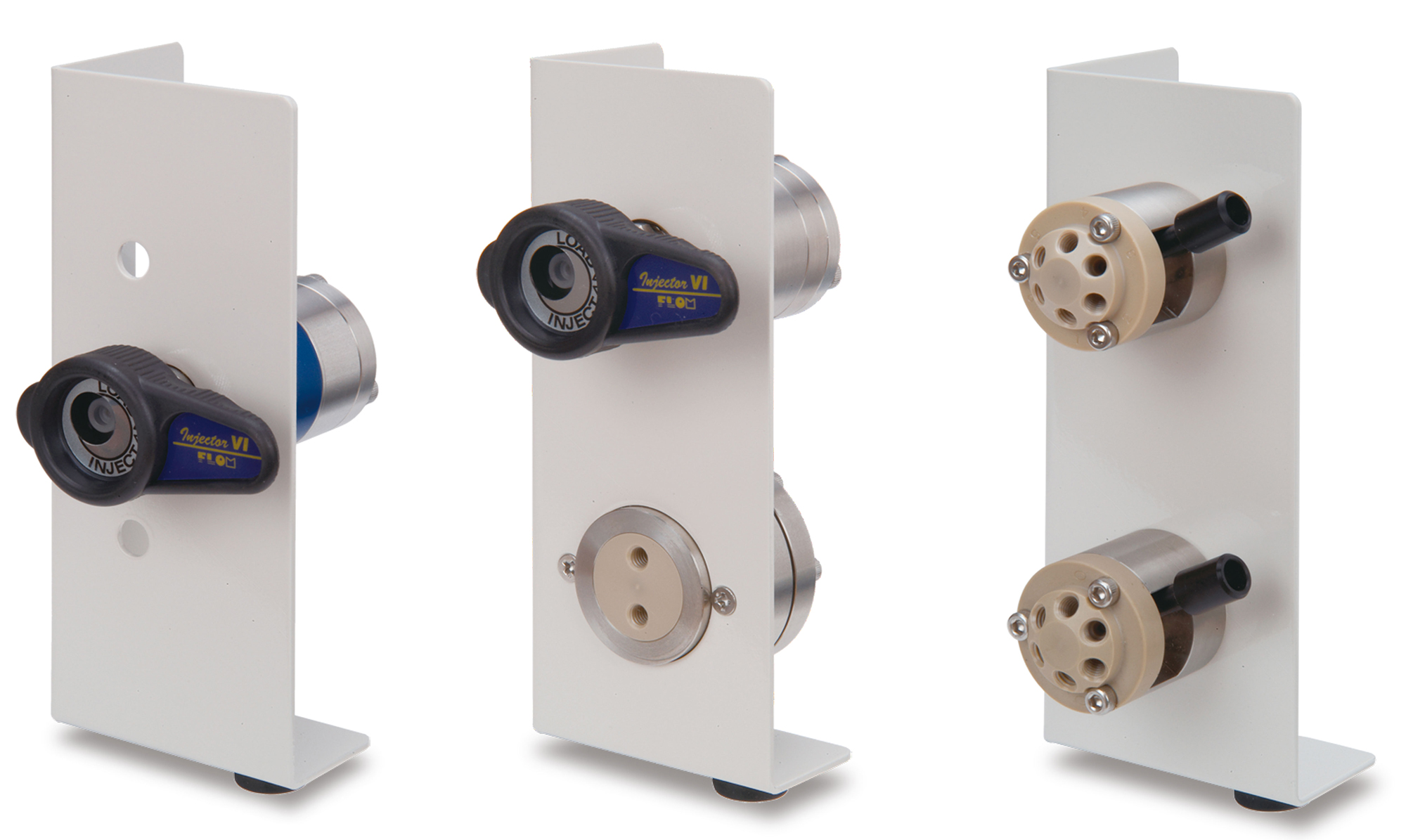

Side Panels for Valve and Pulse Damper

Side Panels for Valve and Pulse Damper
Side Panel 4512 Injector Type 　/ 　Side Panel 4513 njector/Damper Type 　/ 　Side Panel 4514 Compact Valve Type

Manual valves such as sample injector, compact valves and pulsation damper can be installed on the side of all FLOM pumps

Spec

Product Name Side Panel
Product Number 4512 4513 4514
Pump Type UI Series, MP Series, SP Series, DP-11
Attachable Parts VI-11、VI-12、
MI-11、V05		 VI-11、VI-12、
MI-11、V05		 V200、V201、
V204、V239、
V512
Damper Attachable × ○ ×
Dimensions 144(H)×60(W)×44(D), excluding protuberances
Order Code PB1001-10 PB1001-09 PB1001-11

Download PDF
