Stainless Steel Fittings for 1/16” Tubing

Ultra-high Pressure Fittings
(up to 140 MPa)
Medium Pressure Fittings
(up to 40 MPa)

フィッティング

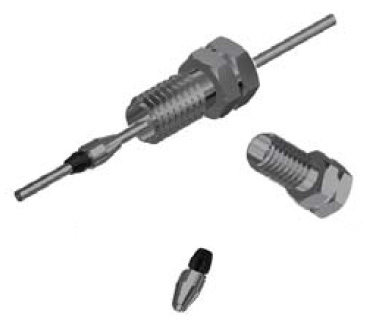

Reuseable high pressure joints

Features

Reduces tube twisting
Ferrule does not bite into tube, making reuse easy

Tightening guide *The guide is just for reference purposes.

Part No.	9620
Pressure	50MPa (500bar , 7252psi)	100MPa (1000bar , 14500psi)	140MPa (1400bar , 20300psi)
Sealing Torque	0.4 N･m	0.8 N･m	1.4 N･m
Tube	Stainless Steel tube

Ultra-high Pressure Fittings (up to 140 MPa)
Stainless Steel Fittings for 1/16” Tubing

*Tables can be swiped.

	Product Name	Part Number	Material	Quantity
	Dual-Fitt SET	9620	SUS316 , PEEK	10/pack

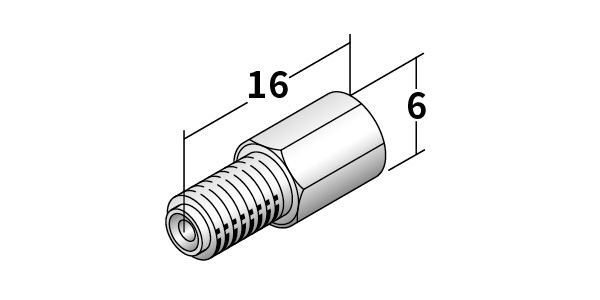

	Dual-Fitting	9621	SUS316	10/pack

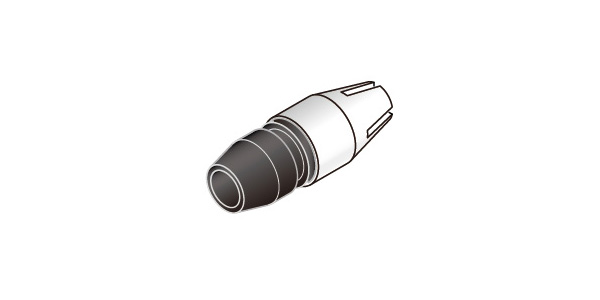

	Replacement Ferrule	9623-05 (5/pack) , 9623-10 (10/pack)	SUS316 , PEEK	5/pack , 10/pack

Medium Pressure Fittings (up to 40 MPa)
SUS Ferrule Type (No.10-32 UNF, OD 1/16” Tubing)

*Tables can be swiped.

	Product Name	Part Number	Material	Quantity
	1/16” Fitting S	9501	SUS316	10/pack
	1/16” Fitting L	9502	SUS316	10/pack
	1/16” Ferrule	9601	SUS316	10/pack
