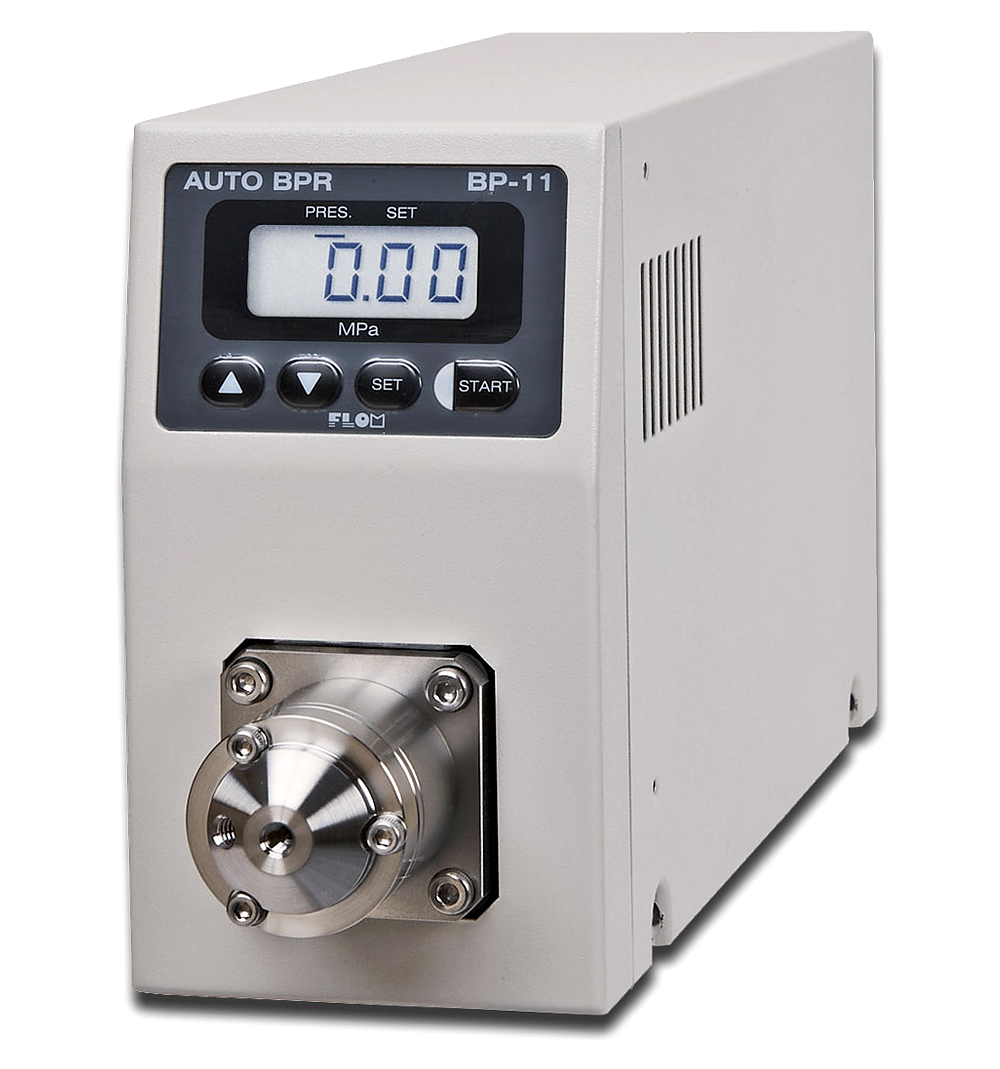

Auto Backpressure Regulator BP-11 Series - Products

HOME > Products > Plunger Pump > Auto Backpressure Regulator BP-11 Series

Product Name	Auto Backpressure Regulator
Product Number	BP-11S	BP-11D
Wetted Materials	SUS316 , PFA	PCTFE、PFA
Path Diameter	0.6mm
Setup Pressure Range	0.10～5.00MPa
Flow Rate Range	0.1～100mL/min
Features	Manual mode, Auto-stop
Pressure Accuracy*¹	±0.1MPa
Pressure Signal Range	Uses pressure signal from UI / MP pumps [ DC1 - 5V ]
Remote Control	Input: Start / Stop, Output: FUNC RS232C , RS485 (between FLOM devices)
Dimensions	144 (H) × 79 (W) × 240 (D) mm, excluding protuberances
Weight	Approx. 2.7 kg
Power	AC100～240V(50/60Hz) MAX 70VA
Order Code	SBP-F012	SBP-F019

*1: Using pure water or methanol, pressure 0.5 ~ 5.0 MPa / flow rate 0.1 ~ 50.0 mL/min.
※: Please contact us if you need flow rates outside 0.1 50 mL/min.

High Quality, Made in Japan.
