HOME > Products > Plunger Pump > Intelligent Pump UI-32 Series

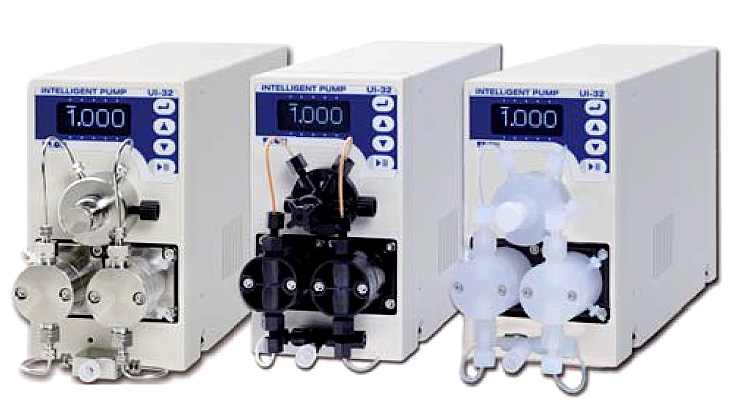

The UI-32 Intelligent Pump is a high-precision pump which provides ultra-low pulsation flow.
New real-time pressure control system equalizes the pump’s internal/external pressure to ensure stable continuous flow.
Selectable Material Lineups
Max. 40 MPa (5800 psi)
The greatest advantage of the plunger pump is its reliable, continuous flow at high pressure.
Self-learning Controlled Flow
The pump automatically minimizes pulsation with adjusting flow condition.

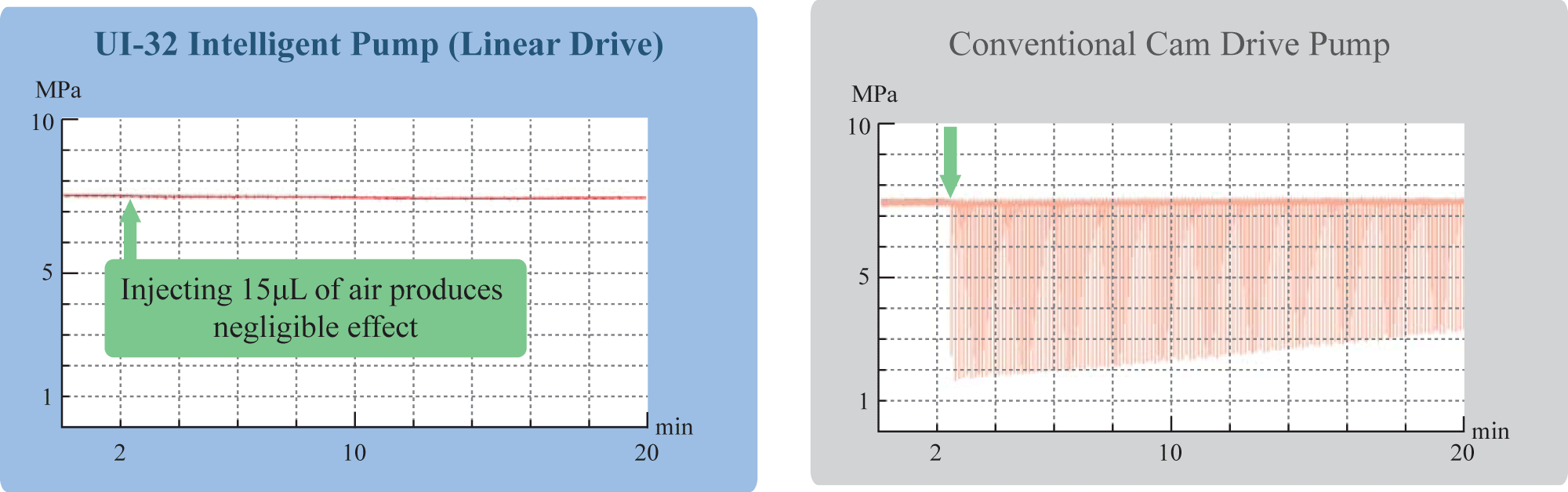

Prevents Trouble by Air Bubbles
The independently controlled linear-drives compress air bubbles to ensure stable flow.
*Tables can be swiped.
| Product Name | Intelligent Pump | |||||||
| Product Number | UI-32-110S | UI-32-110P | UI-32-110D | UI-32-410S | UI-32-410P | UI-32-410D | ||
| Pump Head Material | SUS316 | PEEK | PCTFE | SUS316 | PEEK | PCTFE | ||
| Max Pressure*¹ | 40 Mpa | 20 MPa | 5 MPa (725 psi)*⁴ | 5 MPa | 5 MPa | 2 MPa (290 psi) | ||
| Flow Rate Range*² | 0.001 ～ 9.999 mL/min | 0.01 ～ 99.99 mL/min | ||||||
| Flow Per Stroke | 80 μL | 718 μL | ||||||
| Plunger Stroke | 10 mm | |||||||
| Flow Repeatability*² | < 0.3 % (0.1 ~ 5.0 mL/min) | < 0.3 % (1 ~ 50 mL/min) | ||||||
| Flow Accuracy*² | ± 2.0 % or ± 2 μL/min or less, whichever is greater (at 5 mL/min or the lower) |
± 2.0 % or ± 20 μL/min or less, whichever is greater (at 50 mL/min or the lower) |
||||||
| Flow Mode | Continuous flow mode , Consistent pressure flow mode , Timer flow mode | |||||||
| Satefy Function | Upper / lower pressure limiters | |||||||
| Pressure Accuracy | ± 0.2 MPa | |||||||
| Wetted Materials | SUS : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , ELGILOY®*³ , PEEK , SUS316 PEEK : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , PEEK ,ETFE | |||||||
| Remote Control | Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V Input : Setup flow rate , DC1-5V Output : Pressure signal | |||||||
| Communication | RS232C , RS485 (between FLOM devices) | |||||||

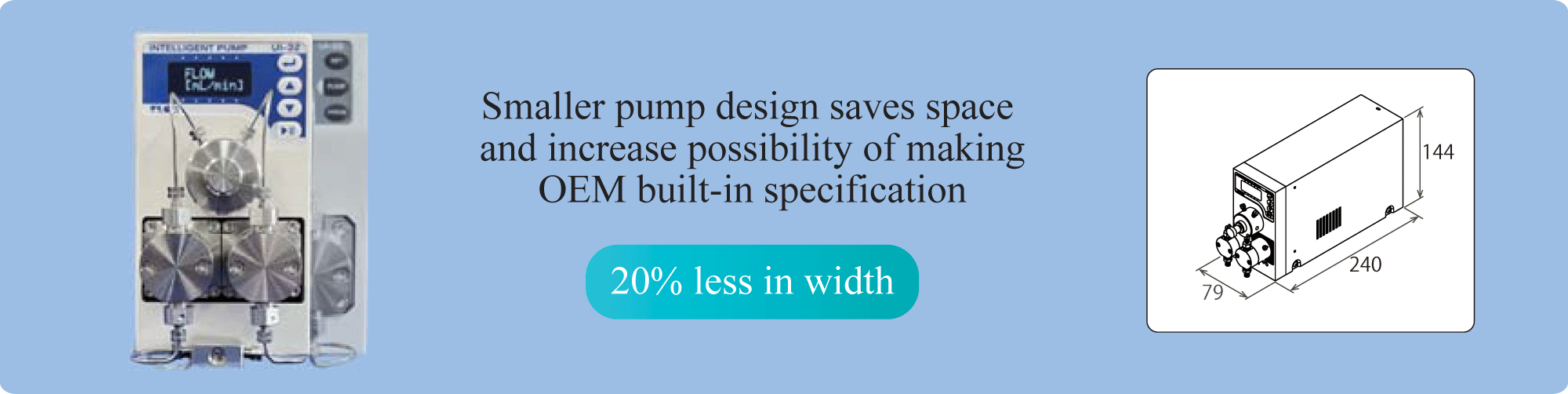

| Dimensions | 144 (H) × 79 (W) × 240 (D) mm , excluding protuberances | |||||||
| Weight | Approx. 3.8 kg | Approx. 3.0 kg | Approx. 3.0 kg | Approx. 3.8 kg | Approx. 3.0 kg | Approx. 3.0 kg | ||
| Power | AC100 ~ 240V (50 / 60 Hz) , MAX 80 VA | |||||||
| Environment Temperature | 5 ~ 40 ℃ , 20 ~ 80 % RH (Non-condensing) | |||||||
| Order Code | SLP-P5006 | SLP-P5008 | SLP-P5009 | SLP-P5010 | SLP-P5011 | SLP-P5012 | ||
