HOME > Products > Degassing Units > Gastorr AG Series

Solvent Degassing Units Gastorr AG Series

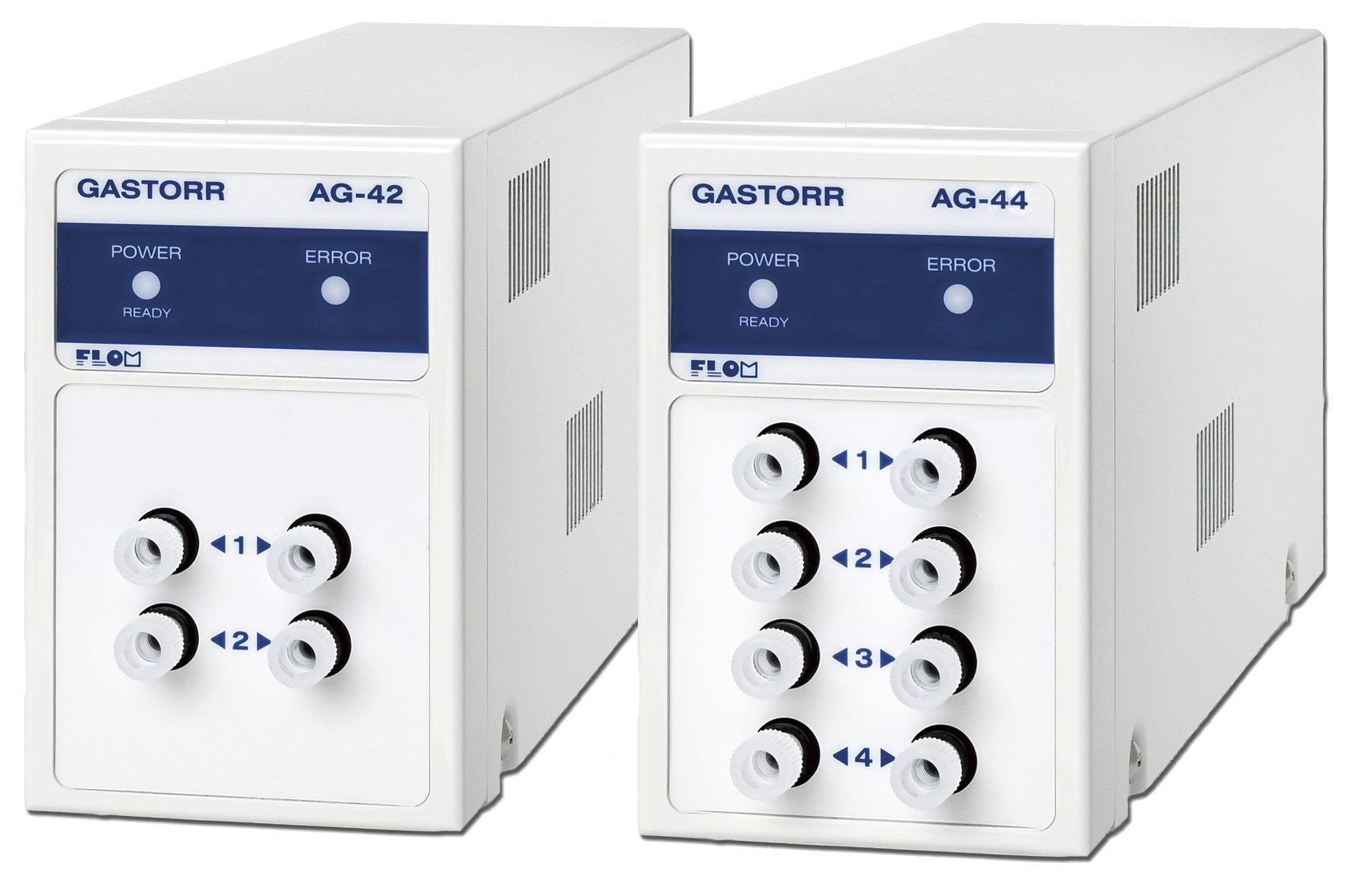

Gastorr AG Series — Gastorr AG-42 / Gastorr AG-44

Redesigned high precision degassing unit with improved self-cleaning function

Features

Uses Teflon™AF tubing for minimal internal volume
Self-cleaning function protects device interior
CPU control achieves stable degassing
Independent chamber design prevents solvent contamination
Choose from 2 channel or 4 channel configurations

Spec

Product Name	AG-42-01	AG-44-01
Channels	2	4
Internal Volume	340μL
Flow Rate	≦10 mL/min
Vacuum Range	100 hPa fixed
Thread Size	1/4-28UNF
Wetted Material	Teflon AF(＊1) , PFA , PPS
Remote Control	-
Dimensions	108 (H) × 70 (W) × 240 (D) mm (excluding protuberances)
Weight	Approx.2.1 Kg
Power	AC100 ～240V (50/60 Hz)　MAX 80VA
Order Code	SGA-G3001	SGA-G3002

*1：Teflon ™ AF is a registered trademark of the Chemours Corporation.
Note: Cannot be used with fluorinated solvents.

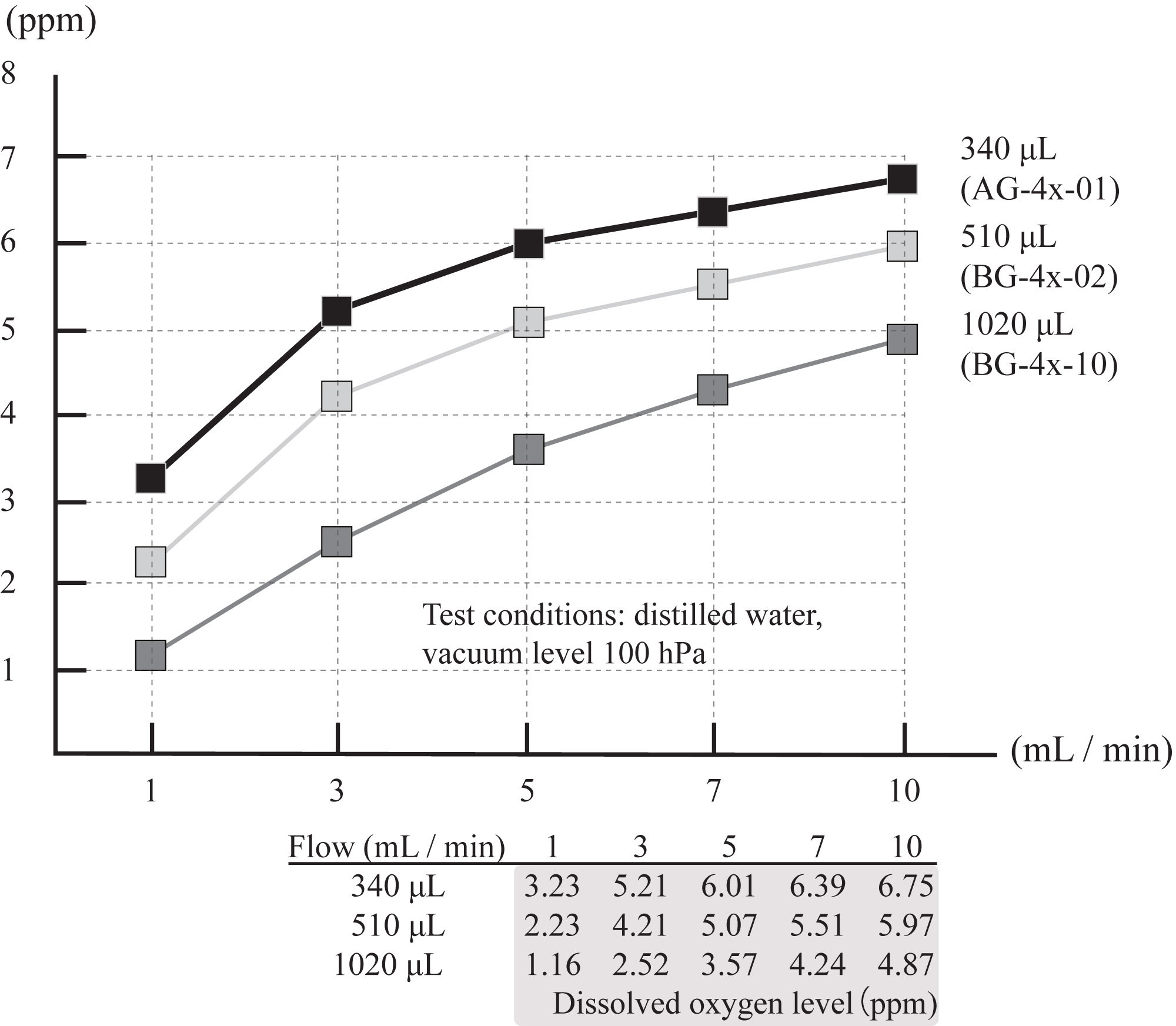

Degassing Performance Comparison Chart (for different volumes)

Note: Degassing performance may vary depending on operating conditions.

Download PDF
