Solvent Degassing Units Gastorr BG Series

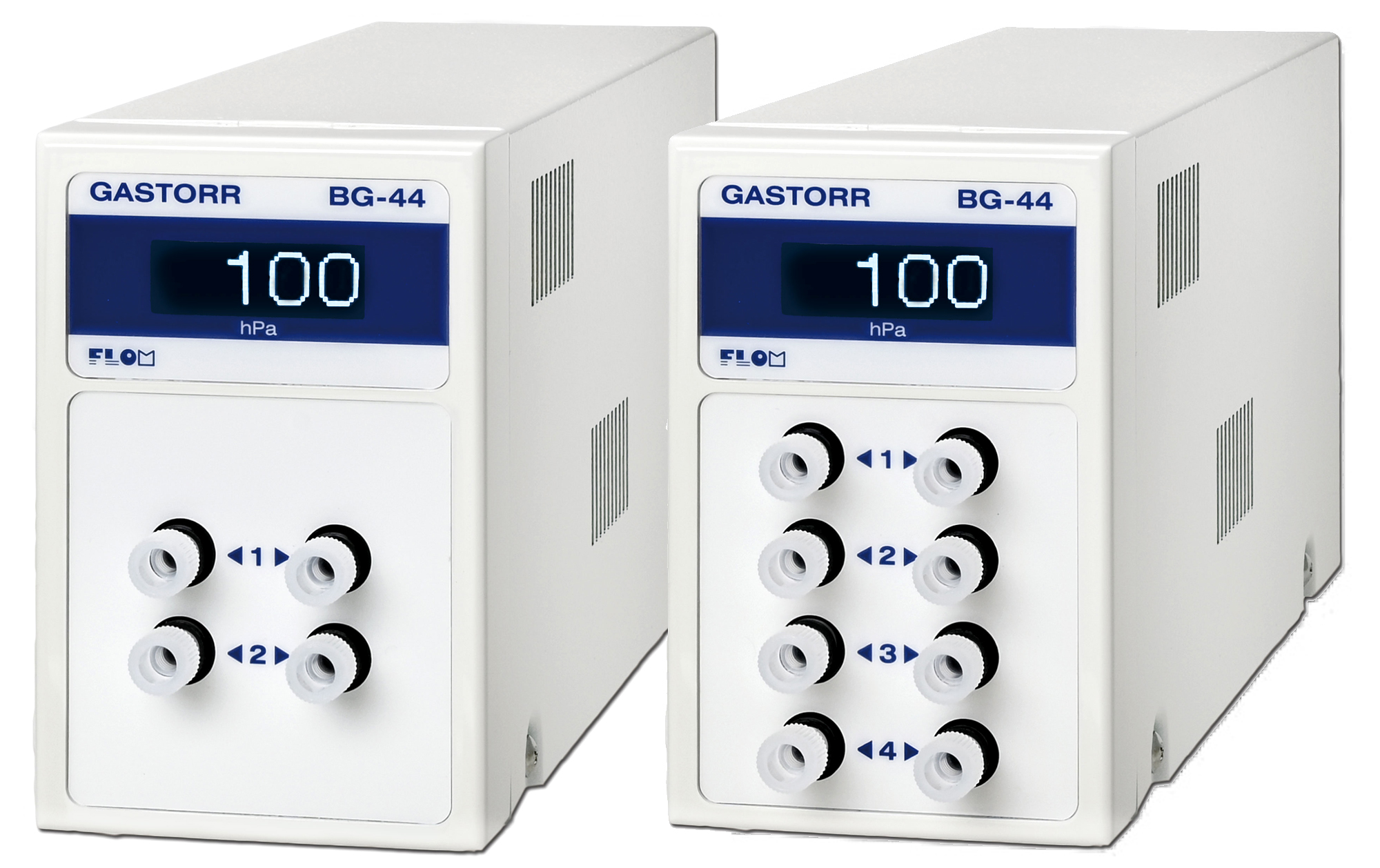

Gastorr BG Series — Gastorr BG-42 / Gastorr BG-44

A higher volume degassing unit for even better degassing functionality

Features

Uses Teflon™AF tubing for minimal internal volume
Choose from 2 internal volumes to fit flow rate
Self-cleaning function preserves device interior
CPU control achieves stable degassing
Independent chamber design prevents solvent contamination
Choose from 2 channel or 4 channel configurations
Real time display of chamber vacuum level (OLED display)

Spec

Product Name	Gastorr Solvent Degassing Unit
Product Number	BG-42-02	BG-44-02	BG-42-10	BG-44-10
Channels	2	4	2	4
Internal Voume	510μL		1020μL
Flow Rate	≦10 mL/min
Vacuum Range	100 hPa fixed		100 hPa fixed
Thread Size	1/4-28UNF		1/4-28UNF
Wetted Materials	Teflon ™ AF*¹, PFA, PPS		Teflon ™ AF*¹, PFA, PPS
Remote Control	Input：　－　Output：Error
Dimensions	108 (H) × 70 (W) × 240 (D) mm (excluding protuberances)
Weight	Approx.2.1 Kg
Power	AC100 ～240V (50/60 Hz)　MAX 80VA
Order Code	SGA-G3003	SGA-G3004	SGA-G3005	SGA-G3006

*1：Teflon ™ AF is a registered trademark of the Chemours Corporation.
Note: Cannot be used with fluorinated solvents.

Degassing Performance Comparison Chart (for different volumes)

Note: Degassing performance may vary depending on operating conditions.
