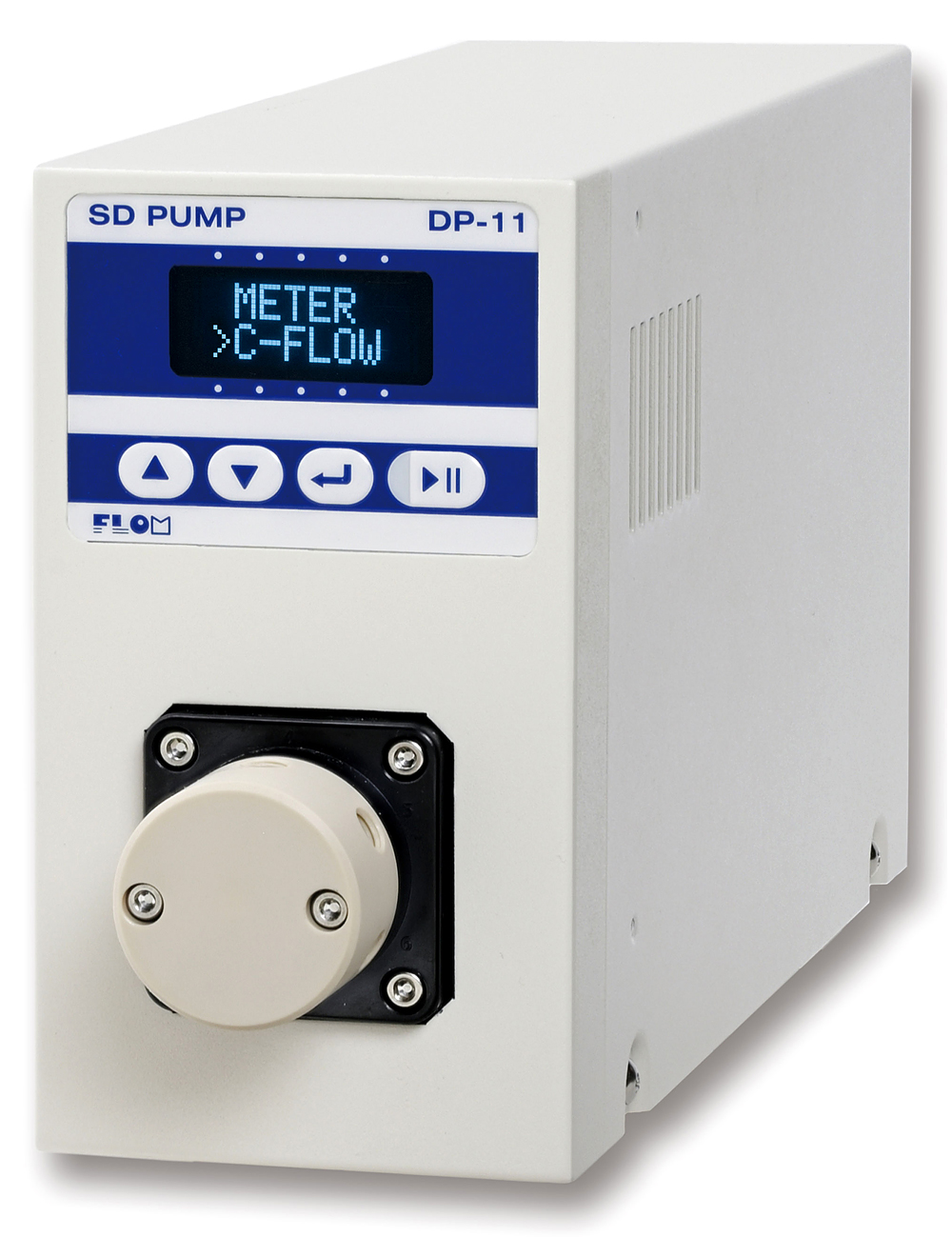

A new conception in multi-purpose pumps from FLOM.

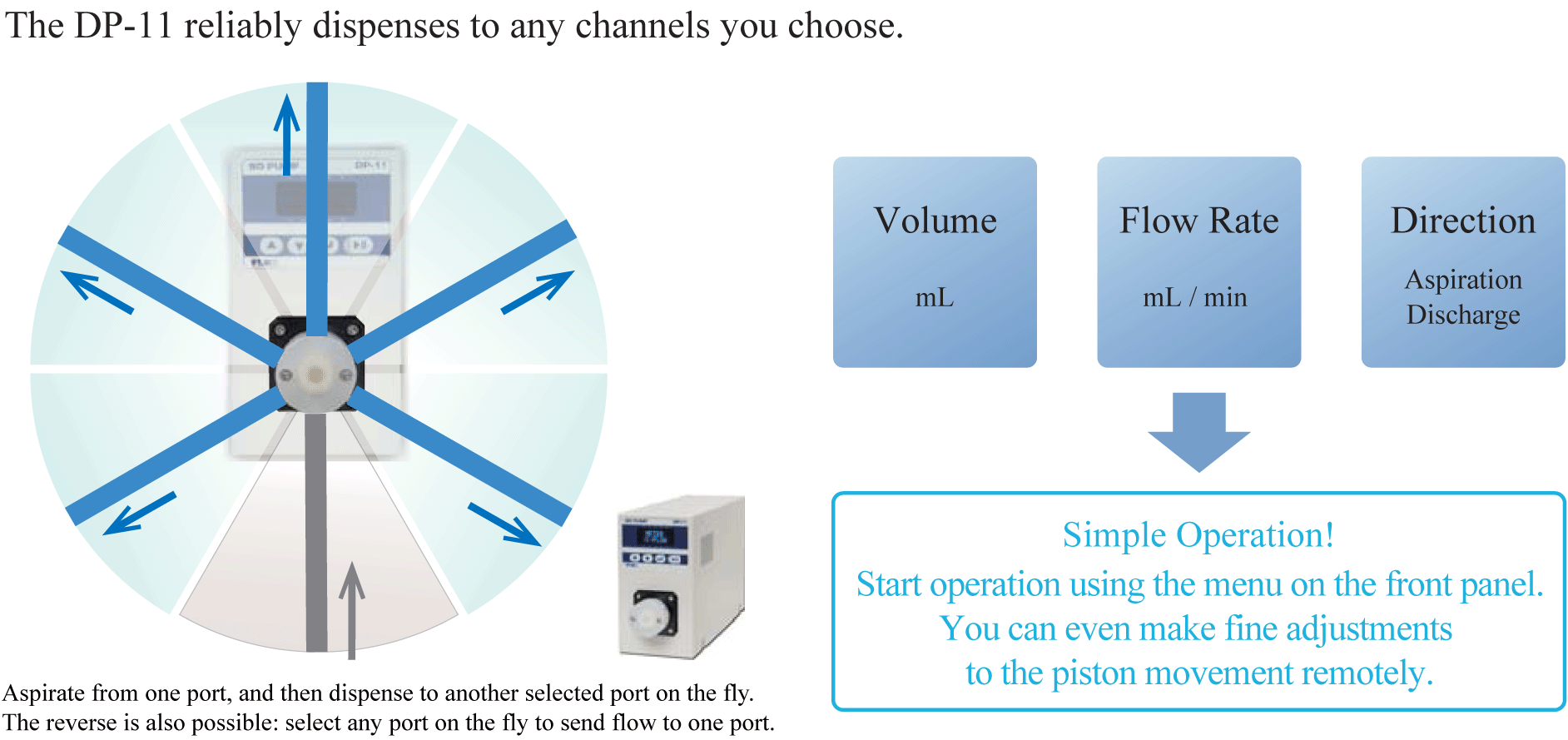

This smart pump can either dispense up to 5 separate channels, or continuously dispense just 1 channel, all in one device.
Accuracy : ±1.0 % or ± 0.01 mL
Repeatability : ± 0.1 % RSD or 0.00 1mL SD
(Measuring Mode)
The DP-11 offers high accuracy flow in both Continuous Flow and Measuring Modes.
Ceramic and PCTFE Chosen for the Wetted Materials
High resistance with a wide range of liquids including strong acid
NO CHECK VALVES!
This avoids the typical problems you get when pumping highly viscous liquids.
Uses FLOM’s Proven Linear Drive!
A smaller mechanical load reduces maintenance frequency.
| Product Name | Switching Delivery Pump | |
| Product Number | DP-11 | |
| Pump Mechanism | Concentric Revolving Control Piston/Reciprocating Method | |
| Pump Flow Modes | Measuring mode, Continuous flow mode, One-shot flow mode ※when remote controlled | |
| Ports | 6 | |
| Measuring Volume Settings | 0.001 ～ 9.999 mL 0.01 ～ 99.99 mL 0.1 ～ 999.9 mL 1 ～ 9999 mL any of the above selectable 0.001 ～ 9999.999mL ※when remote controlled |
|
| Flow Rate Settings | Continuos Flow | 0.1 ～ 10.0 mL/min (8 mm stroke) 0.1 ～ 6.0 mL/min (4 mm stroke) |
| One-Shot Flow | 0.1 ～ 25.0 mL/min ※when remote controlled | |
| Maximum Pressure | 0.5 (72.5 psi) MPa or less | |
| Volume Per Stroke | 300 μL (8 mm stroke) | |
| Measuring Mode | Accuracy | ± 1.0 % or ± 0.01 mL or less, whichever is greater*¹ |
| Repeatability | 0.1 % RSD or 0.001 mL SD or less, whichever is greater*¹ | |
| Continuous Flow Mode | Accuracy | ± 2.0 % or less, only when pumping1 mL/min or higher*² |
| Repeatability | 0.1 % RSD or 0.005 minutes SD or less, whichever is greater*² | |
| Special Functions | Variable piston stroke (8 mm / 4 mm) Piston quick movement (suction / discharge) Flow volume correction |
|
| Port Type | 1/4-28 UNF | |
| Connecting Tube Diameters | 1/8” , 3.0 mm , 2.0 mm , 1/16” | |
| Wetted Materials | Ceramic, PCTFE, PTFE, FFKM | |
| Remote Control Signals | Measuring: start measuring, end measuring Continuous flow: start continuous, error either one of the above sets |
|
| Communication | RS232C , RS485 (between FLOM devices) | |
| Dimensions | 144 (H) × 79 (W) × 240 (D) mm , excluding protuberances | |
| Weight | Approx. 2.4 kg | |
| Power | AC 100 ～ 240 V (50 / 60 Hz) , MAX 80 VA | |
| Order Code | SSD-F022 | |
| P/N | Product Name | Notes | |
| 9823D | 1/8” Flat Seal Fitting D (10/Pack) | For OD 3.0 mm, 1/8” tubing |  |
| 9774 | 1/8” Flat Seal Ferrule (10/Pack) | For OD 1/8” tubing |  |
| 9775 | 3.0 mm Flat Seal Ferrule (10/Pack) | For OD 3.0 mm tubing |  |
| 9773 | 1/16” HEX Flat Seal Fitting (10/Pack) | For OD 1/16” tubing |  |
| 9706 | 1/16” M6 Flat Seal Ferrule (10/Pack) | For OD 1/16” tubing |  |
| 8810 | Suction Filter | For OD 3.0 mm, 1/8” tubing |  |
| 8811 | Suction Filter | For OD 1/16” tubing |  |
| 2710 | 1/4-28 Seal Plug (4/pack) | DP-11 Stop plug |  |
