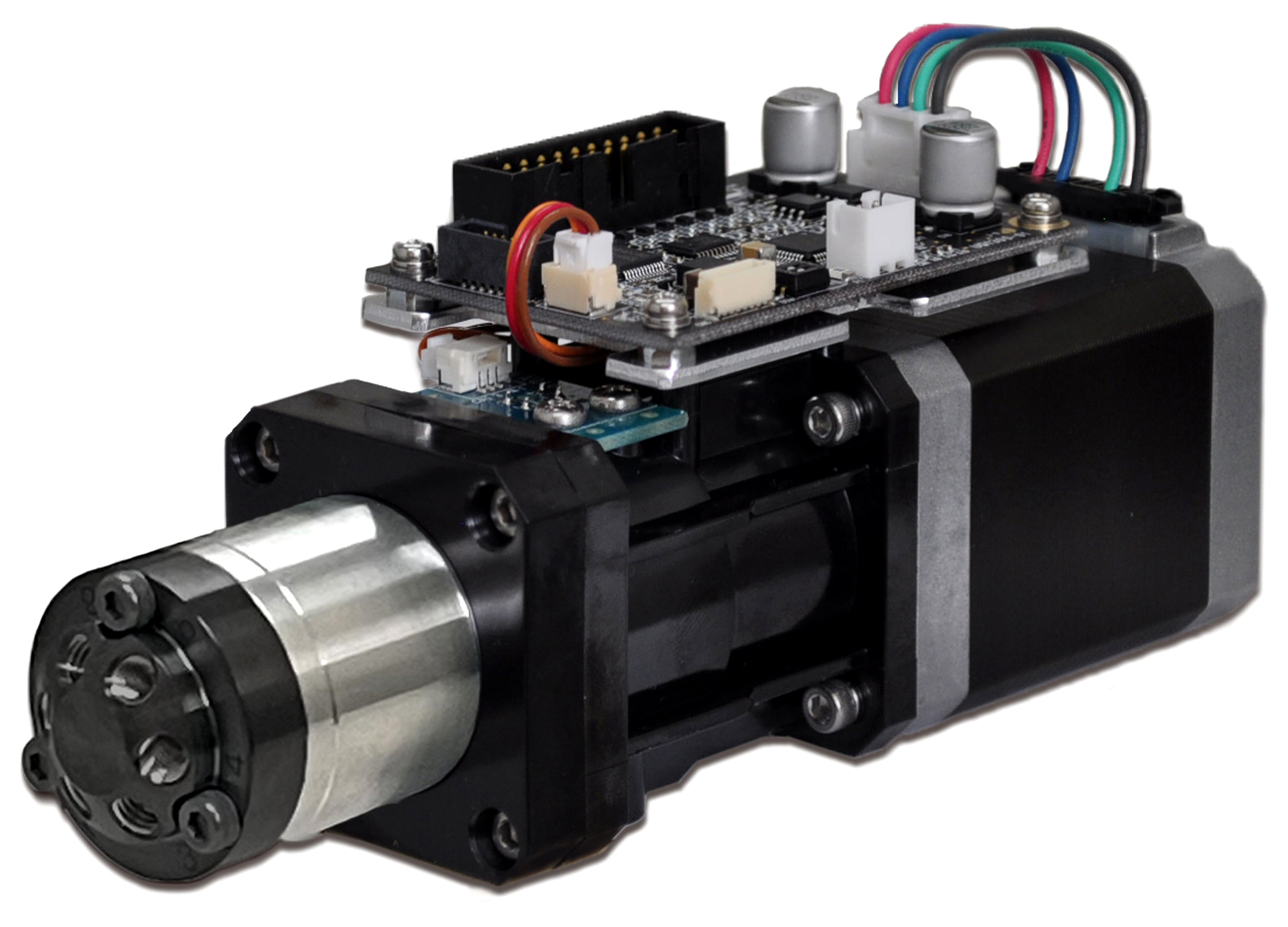

HOME > Products > OEM Products > <OEM> Auto Valve Unit VF-03 Series
| Product Number | VF-03 |
| Drive | Direct drive with stepping motor |
| Switching Modes | 2 position switching , Rotary switching |
| Switching Speed | 0.1 sec (when switching 60°) |
| Communication | RS232C, RS485 (between FLOM devices） |
| Power | DC 24 V , MAX 50 W |
| Weight* | Approx. 0.8 kg |
*Tables can be swiped.
| Product Number | Type | Path Position | Max Pressure | Wetted Materials | Tube OD | Thread Size | Path Diameter |

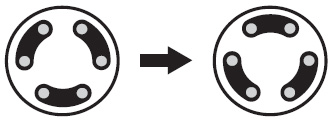

| VF-03-701 | 6 Port 2 position |
 |
40 MPa (5800 psi) | SUS , PEEK | 1/16” | No.10-32UNF | 0.25 mm (0.010”) |
| VF-03-702 | 30 MPa (4350 psi) | PEEK, Ceramic | 1/16” | No.10-32UNF | 0.25 mm (0.010”) | ||
| VF-03-703 | 40 MPa (5800 psi) | SUS , PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.020) | ||
| VF-03-704 | 30MPa (4350 psi) | PEEK, Ceramic | 1/16” | No.10-32UNF | 0.5 mm (0.020) | ||

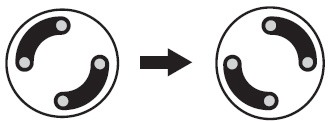

| VF-03-709 | 4 Port 2 position |
 |
40 MPa (5800 psi) | SUS , PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.020) |
| VF-03-710 | 30 MPa (4350 psi) | PEEK, Ceramic | 1/16” | No.10-32UNF | 0.5 mm (0.020) | ||

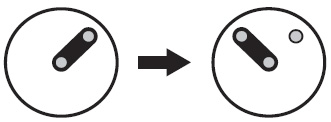

| VF-03-711 | 2 Port selection |
 |
40 MPa (5800 psi) | SUS , PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.020) |
| VF-03-712 | 30 MPa (4350 psi) | PEEK, Ceramic | 1/16” | No.10-32UNF | 0.5 mm (0.020) | ||
| VF-03-715 | 4 port Rotary |
 |
40 MPa (5800 psi) | SUS , PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.020) |
| VF-03-716 | 30 MPa (4350 psi) | PEEK, Ceramic | 1/16” | No.10-32UNF | 0.5 mm (0.020) | ||

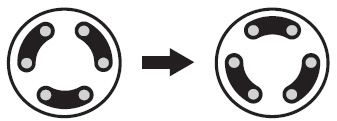

| VF-03-717 | 6 port Rotary |
 |
40 MPa (5800 psi) | SUS , PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.020) |
| VF-03-718 | 30 MPa (4350 psi) | PEEK, Ceramic | 1/16” | No.10-32UNF | 0.5 mm (0.020) | ||
| VF-03-728 | 6 Port 2 position |
 |
40 MPa (5800 psi) | SUS , PEEK | 1/16” | No.10-32UNF | 0.15 mm (0.006”) |
| VF-03-729 | 140 MPa (20305 psi) | SUS | 1/16” | No.10-32UNF | 0.15 mm (0.006”) | ||
| VF-03-730 | 140 MPa (20305 psi) | SUS | 1/16” | No.10-32UNF | 0.25 mm (0.010”) | ||

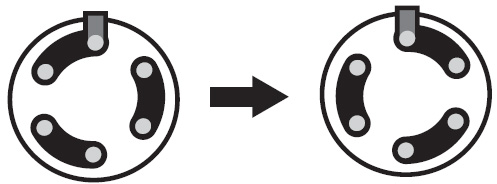

| VF-03-750 | 6-port vertical injection port |
 |
40MPa (5800psi) | SUS , PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.020”) |
| VF-03-755 | 40MPa (5800psi) | PEEK , Ceramic | 1/16” | No.10-32UNF | 0.5 mm (0.020”) |
