Cam-drive Single Plunger PumpPCS Pump SP-32 Series

About the Single Plunger Pump SP Series

A new cam-drive mechanism provides stable flow up to the maximum setup flow rate.

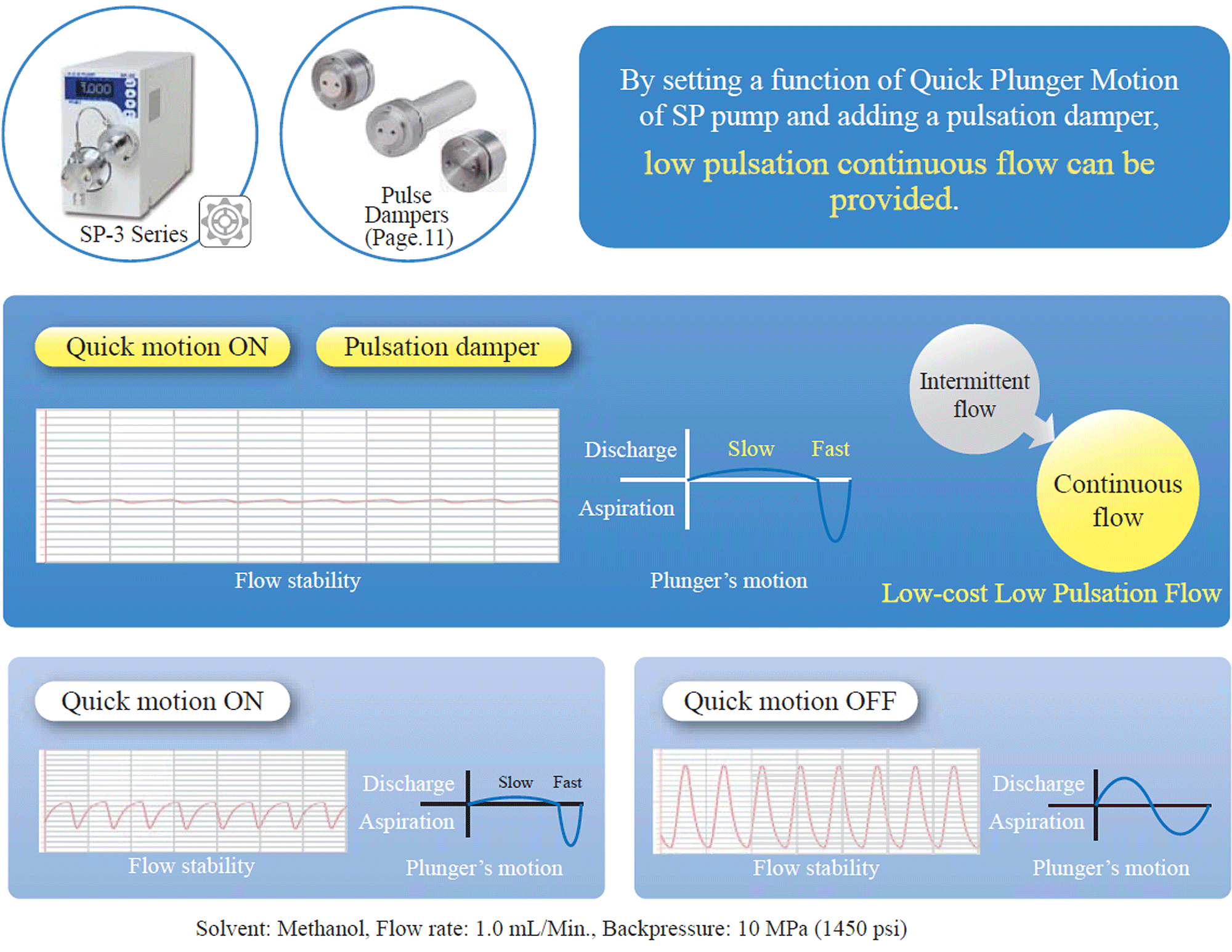

Low pulsation continuous flow can be provided with using a pulsation damper.

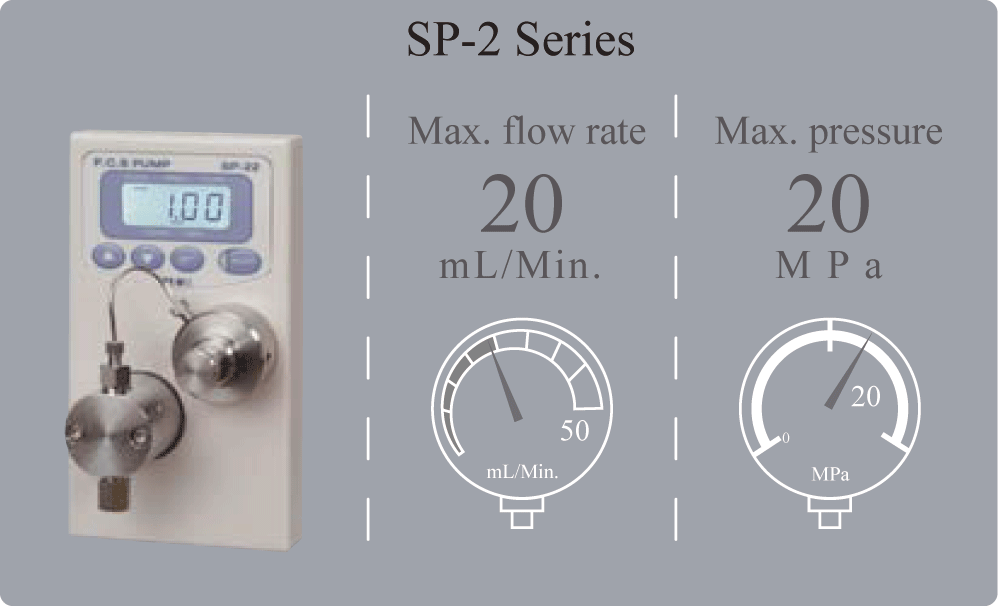

High Performance Single Plunger Pump

- Wider setup flow rate range - Improved maximum pressure

Pump head material is available to choose from Stainless Steel and PEEK specifications.

Stainless Steel Specification:
Designed for high pressure with allowance for wide range of chemical resistance

PEEK Specification:
Designed for applications not expected to be exposed to metal

Cost-effective Low Pulsation Continuous Flow

Instead of using dual plunger pump, we would like to recommend a combination of SP single plunger pump and pulsation damper.
The pulsation damper is available to choose from 3 types as low, medium and high pressure.

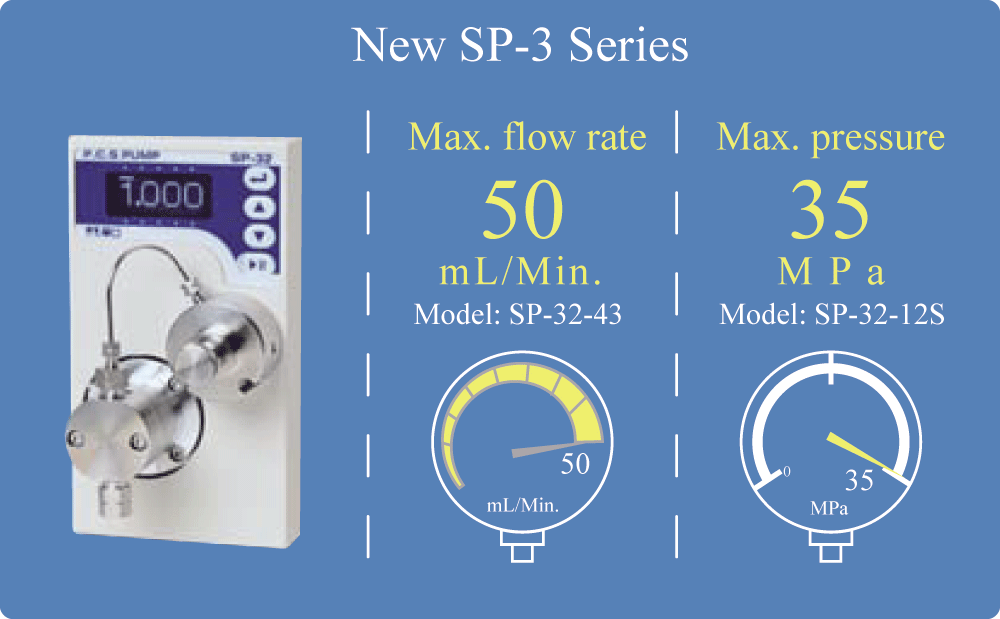

Single plunger pump equipped with pressure sensor

Features

Uses proven cam-driven pump structure
Maximum flow rate can be set for continuous operation
Quick Plunger Motion for pulse control
Pressure sensor allows setting upper / lower limits
3 selectable flow modes
8 separate configurations of flow range / pump head material
Control with RS232C protocol

Spec

*Tables can be swiped.

Product Name	PCS Pump (with pressure sensor)
Product Number	SP-32-12S	SP-32-12P	SP-32-13S	SP-32-13P	SP-32-42S	SP-32-42P	SP-32-43S	SP-32-43P
Pump Head Material	SUS316	PEEK	SUS316	PEEK	SUS316	PEEK	SUS316	PEEK
Max Pressure^※1	35 MPa	20 MPa	25 MPa	20 MPa	5 MPa	5 MPa	2 MPa	2 MPa
Flow Rate Range	0.001～2.500mL/min		0.001～5.000mL/min		0.01～25.00mL/min		0.01～50.00mL/min
Flow Per Stroke	16μl		32μl		144μl		287μl
Plunger Stroke	2mm		4mm		2mm		4mm
Flow Repeatability^※2	< 0.5 % RSD (at 0.100 mL/min or greater)				< 0.5 % RSD (at 1.00 mL/min or greater)
Flow Accuracy^※2	± 2.0 % or ± 2 μL/min or less, whichever is greater				± 2.0 % or ± 20 μL/min or less, whichever is greater
Features	Quick Plunger Motion , Continuous Flow , Timer Mode , Consistent Pressure Mode , Upper / Lower Pressure Limiters
Pressure Accuracy	± 0.2 MPa (± 29 psi)
Wetted Materials	SUS : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , ELGIROY®*³ , PEEK , SUS PEEK : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , PEEK
Remote Control	Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V Input : Setup flow rate , DC1-5V Output : Pressure signal
Communication	RS232C , RS485 (between FLOM devices)
Dimensions	144 (H) × 79 (W) × 240 (D) mm , excluding protuberances
Weight	Approx.2.8kg
Power	DC24V , Max 30 W (AC adapter standard)
Order Code	SSP-P3514	SSP-P3513	SSP-P3517	SSP-P3516	SSP-P3520	SSP-P3519	SSP-P3523	SSP-P3522

*1: Maximum pressure is only sustained intermittently, this does not mean maximum pressure under continuous use.
*2: Test data generated under FLOM’s standard test conditions.
*3: ELGILOY® is a registered trademark of the Elgiroy Specialty Metals.

Cam-drive Single Plunger PumpPCS Pump SP-31 series

Single plunger pump without pressure sensor

Features

Uses proven cam-driven pump structure
Maximum flow rate can be set for continuous operation
Quick Plunger Motion for pulse control
Cost-saving without equipping pressure sensor
2 selectable flow modes
8 separate configurations of flow range / pump head material
Control with RS232C protocol

Spec

*Tables can be swiped.

Product Name	PCS Pump (without pressure sensor)
Product Number	SP-31-12S	SP-31-12P	SP-31-13S	SP-31-13P	SP-31-42S	SP-31-42P	SP-31-43S	SP-31-43P
Pump Head Material	SUS316	PEEK	SUS316	PEEK	SUS316	PEEK	SUS316	PEEK
Max Pressure^※1	35MPa	20MPa	25MPa	20MPa	5MPa	5MPa	2MPa	2MPa
Flow Rate Range	0.001～2.500mL/min		0.001～5.000mL/min		0.01～25.00mL/min		0.01～50.00mL/min
Flow Per Stroke	16μl		32μl		144μl		287μl
Plunger Stroke	2mm		4mm		2mm		4mm
Flow Repeatability^※2	< 0.5 % RSD (at 0.100 mL/min or greater)				< 0.5 % RSD (at 1.00 mL/min or greater)
Flow Accuracy^※2	± 2.0 % or ± 2 μL/min or less, whichever is greater				± 2.0 % or ± 20 μL/min or less, whichever is greater
Features	Quick Plunger Motion , Continuous Flow , Timer Mode
Pressure Accuracy	‐
Wetted Materials	SUS : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , ELGIROY®*³ , PEEK , SUS PEEK : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , PEEK
Remote Control	Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V Input : Setup Flow rate , DC1-5V Output : -
Communication	RS232C , RS485 (between FLOM devices)
Dimensions	144(H)×79(W)×240(D), excluding protuberances
Weight	Approx.2.8kg
Power	DC24V, Max 30W (AC adapter standard)
Order Code	SSP-P3502	SSP-P3501	SSP-P3505	SSP-P3504	SSP-P3508	SSP-P3507	SSP-P3511	SSP-P3510

*1: Maximum pressure is only sustained intermittently, this does not mean maximum pressure under continuous use.
*2: Test data generated under FLOM’s standard test conditions.
*3: ELGILOY® is a registered trademark of the Elgiroy Specialty Metals.
