HOME > Products > Plunger Pump > Intelligent Micro Pump MP-32 Series

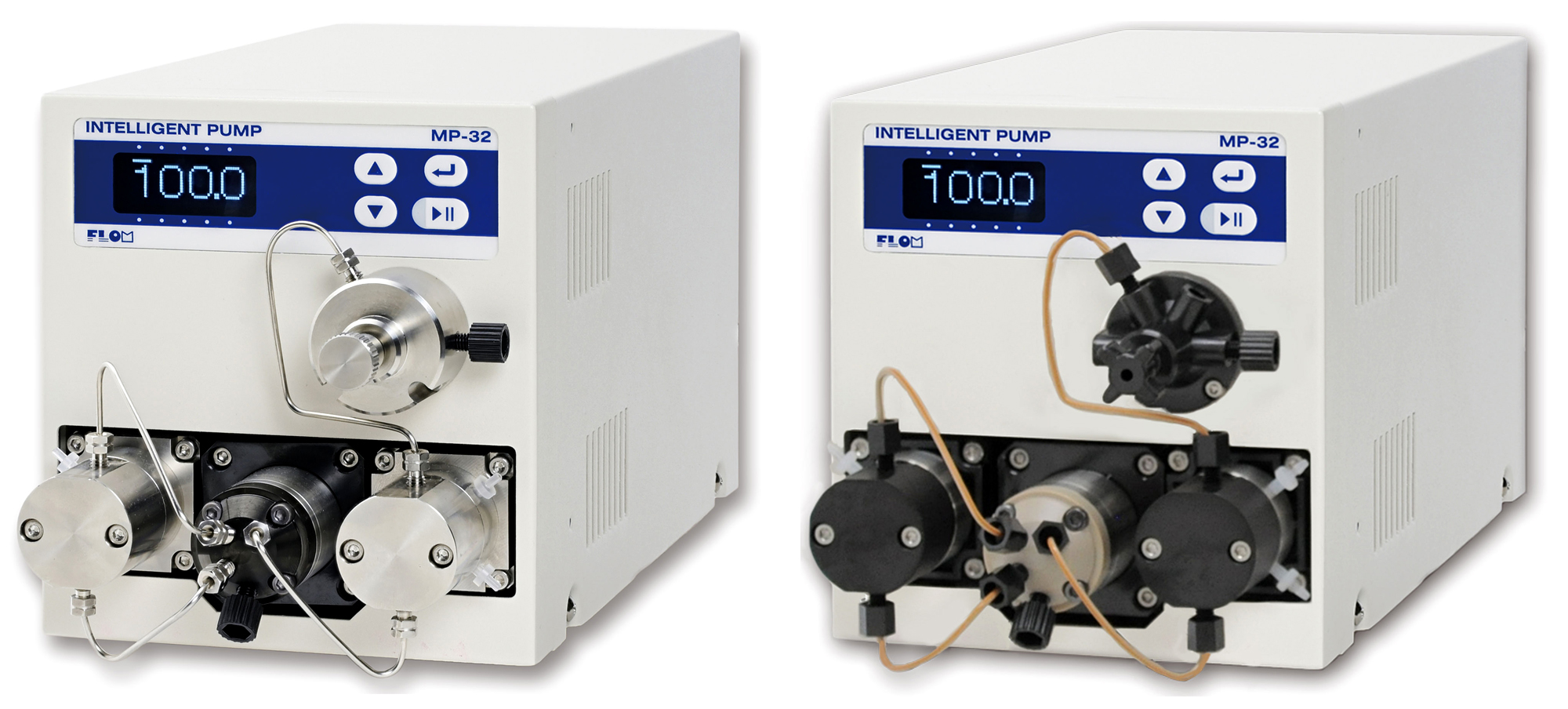

The MP-32 Intelligent Micro Pump is specially designed for needs of continuous low-pulsation flow in micro-liter scale flow range.

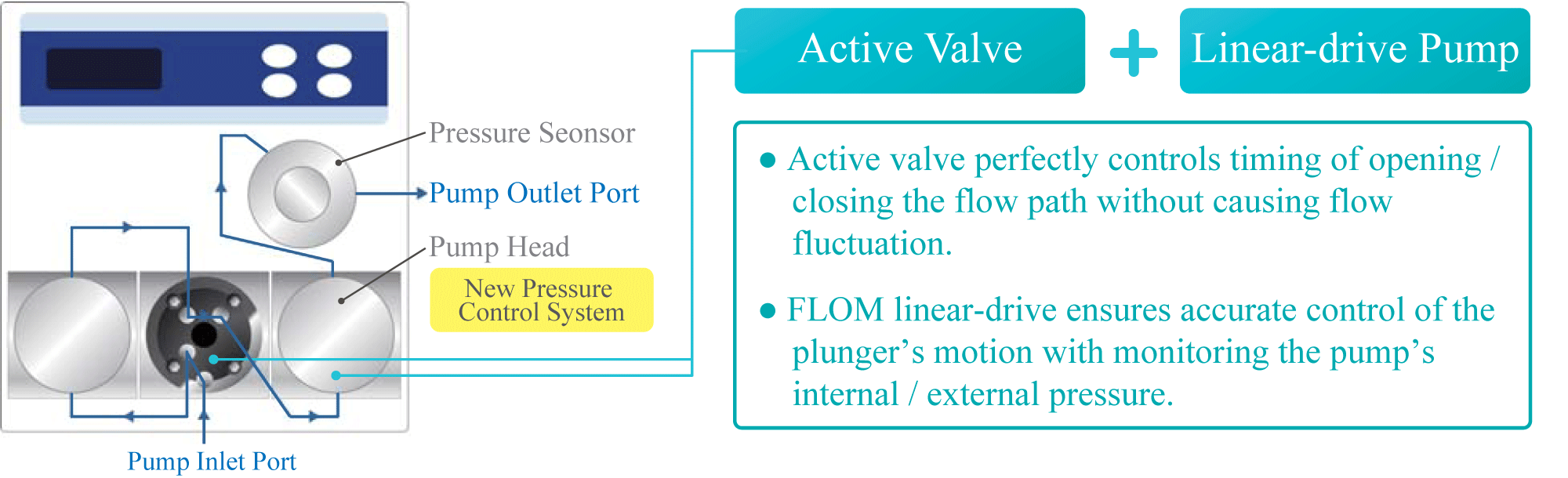

Switching Valves + Linear Drive Pump
FLOM’s unique design concept reduces pulsing to an absolute minimum.
Designed without Check Valves!

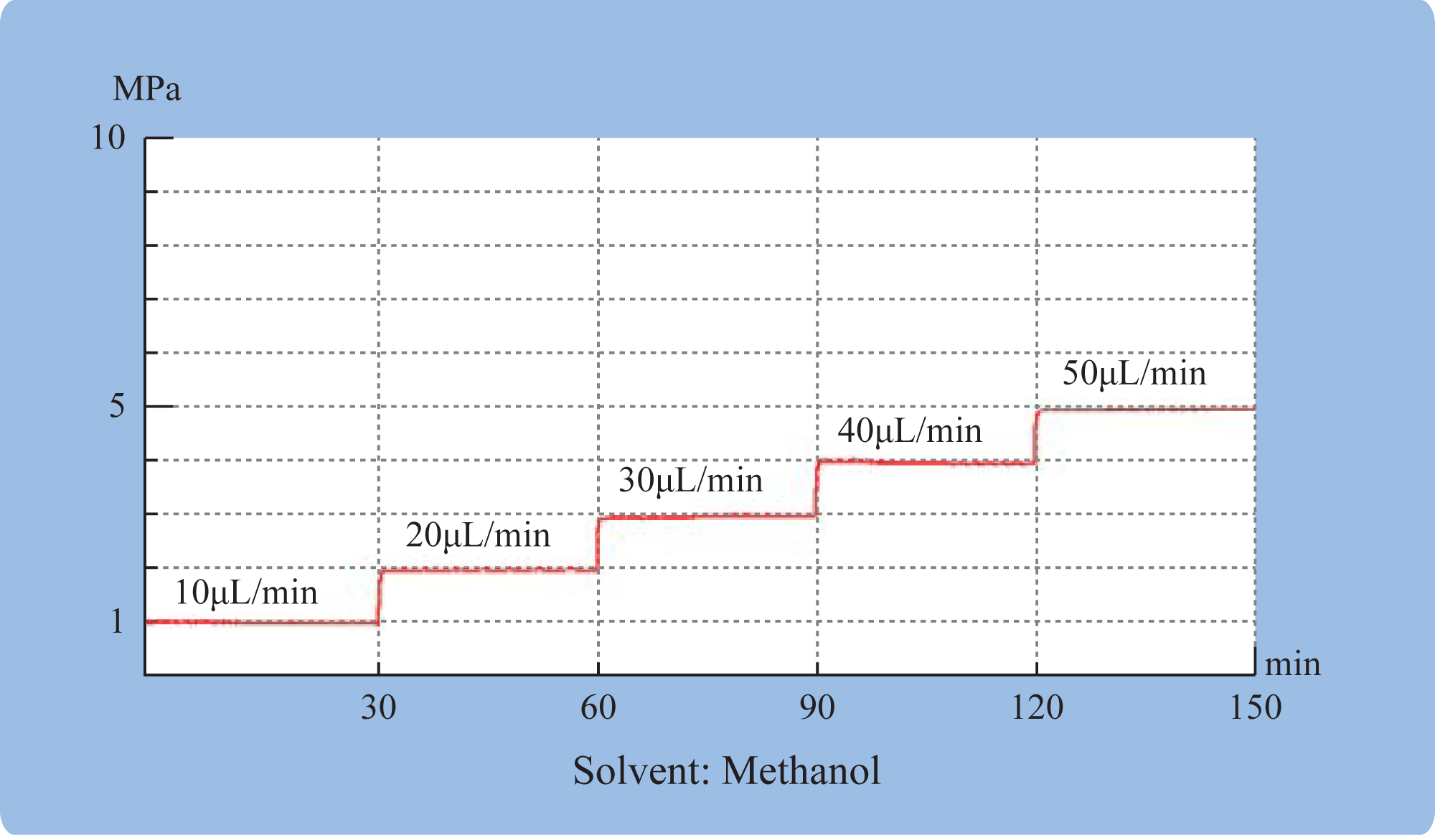

Reliable, stable flow at low flow rates.
Cost-effective
Several parts were reduced by applying the new high performance valve.
Maximum Pressure 40MPa (5800 psi)
The greatest advantage of the plunger pump is its reliable, continuous flow at high pressures.
| Product Name | Intelligent Micro Pump | |
| Product Number | MP-32-110S | MP-32-110P |
| Pump Head Material | SUS316 | PEEK |
| Max Pressure*¹ | 40 MPa | 20 MPa |
| Flow Rate Range*² | 0.1 ～ 500.0 μL/min | |
| Plunger Stroke | 10 mm | |
| Flow Per Stroke | 80 μL | |
| Flow Repeatability*³ | < 0.3 % RSD (10 ~ 250 μL/min) | |
| Flow Accuracy*⁴ | ± 2.0 % or ± 0.2 μL /min or less, whichever is greater (at 250 μL/min or the lower ) | |
| Flow Mode | Continuous flow mode , Timer flow mode | |
| Satefy Function | Upper / lower pressure limiters | |
| Pressure Accuracy | ± 0.2 MPa | |
| Wetted Materials | SUS : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , ELGILOY®*³ , PEEK , SUS316 PEEK : Sapphire , Ruby , PCTFE , PFA , UHMW-PE , FFKM , PEEK |
|
| Remote Control | Input : START / STOP , Output : ERROR / FUNC (either one of READY / END / RUN) DC1-5V Input : Setup flow rate , DC1-5V Output : Pressure signal |
|
| Communication | RS232C , RS485 (between FLOM devices) | |
| Dimensions | 150 (H) × 150 (W) × 240 (D) mm , excluding protuberances | |
| Weight | Approx. 5.1 kg | |
| Power | AC 100 ～ 240 V (50 / 60 Hz) , MAX 250 VA | |
| Environment Temperature | 5 ~ 40℃ , 20 ~ 80 % RH (Non-condensing) | |
| Order Code | SMP-P5501 | SMP-P5502 |
