HOME > Products > Tubing and Fittings > PEEK Fittings for 1/16” Tubing
An unique fitting which prevents tube twisting and ferrule falling down while tightening

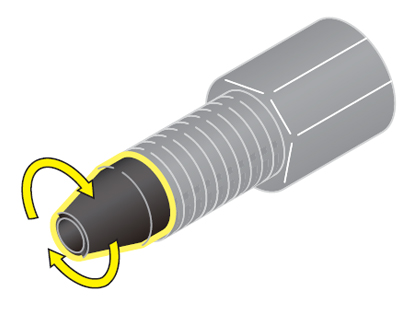

Ferrule Free-rotation Structure
| Pressure | 30 MPa (4350 psi) |
| Sealing Torque | 0.3 N・m |
| Tube | PEEK tube |
*Tables can be swiped.
| Product Name | Part Number | Material | Quantity | |
|---|---|---|---|---|
 |

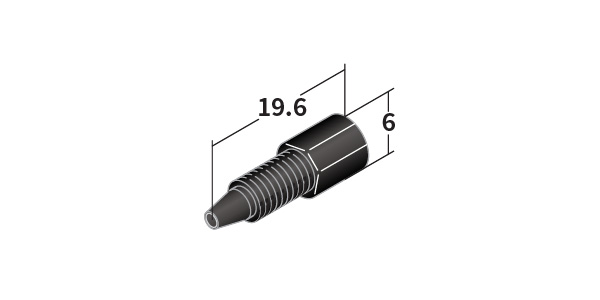

1/16” HEX Single Lock Fitting P | 9903P | PEEK | 10/pack |
 |
1/16” HEX Single Lock Fitting Mini P | 9935P | PEEK | 10/pack |
Sealing Torgue: 0.3 N・m (at pressure of 40 MPa)
Note: when using OD 1/16” ID 0.13 mm PEEK Tubing.
*Tables can be swiped.
| Product Name | Part Number | Material | Quantity | |
|---|---|---|---|---|
 |

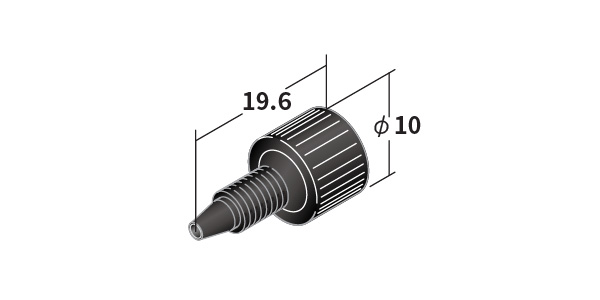

Easy Fitt 10φ | 9001 | PEEK | 10/pack |
 |

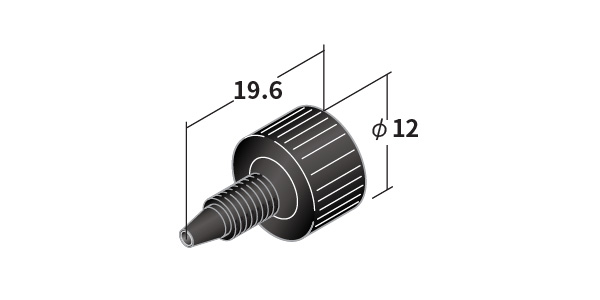

Easy Fitt 12φ | 9002 | PEEK | 10/pack |
 |

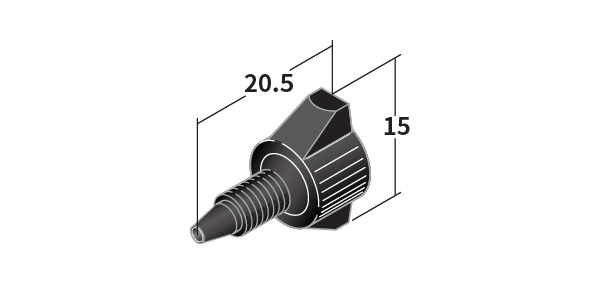

Easy Fitt Type 2 | 9130 | PEEK | 10/pack |
 |

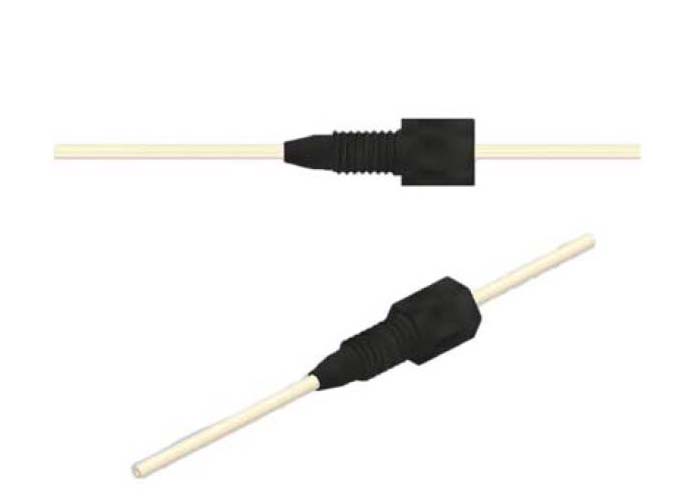

Stop Fitt | 9004 | PEEK | 10/pack |
Note: The dimensions listed are in mm.
*Tables can be swiped.
| Product Name | Part Number | Material | Quantity | |
|---|---|---|---|---|
 |

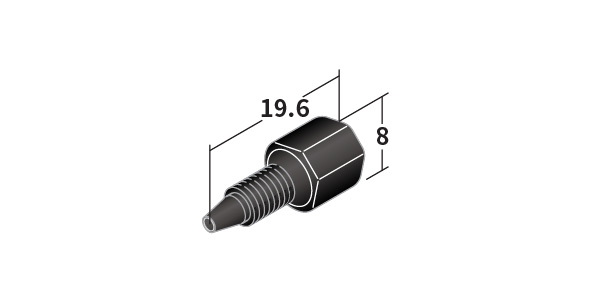

Hex Fitt | 9003 | PEEK | 10/pack |
 |

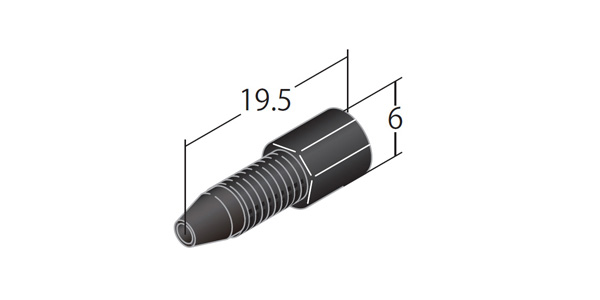

Hex Fitt Mini | 9135 | PEEK | 10/pack |
